PRODUCT DESCRIPTION

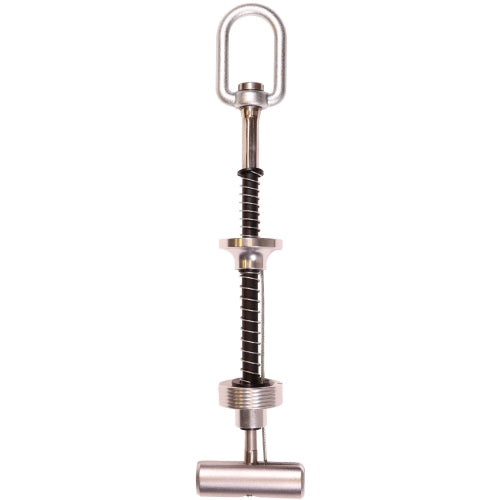

The 7/8" Precast Concrete Toggle Lok Anchor 5K (Part #A6004) is a versatile, portable precast anchor used exclusively as a concrete/steel anchorage connector for fall protection. These precast concrete lifting anchors are easy to install, just compress its spring and insert the cable shaft into the hole, and can be inserted inside precast concrete and steel flanges. This concrete anchor is designed for use in 12-inch thick cured precast concrete with a compression strength of at least 3000 p.s.i.

FEATURES

• Meets ANSI Z359.1-2007, ANSI A10.32-12 and CA-EN 795
• Compliant with OSHA 1926.502 and OSHA 1910.66
• Size: 7/8”
• Weight: 0.6-lbs
• Breaking Strength: 5,000 lbs / 22kn
