PRODUCT DESCRIPTION

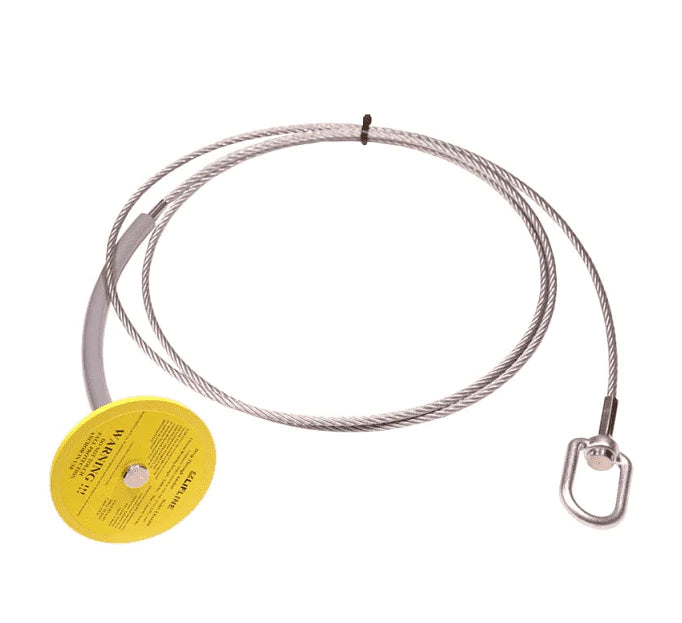

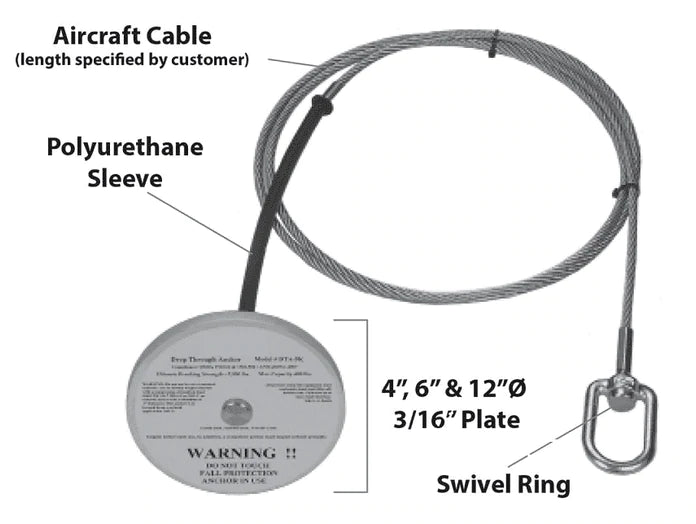

The 5K Drop Through Anchor - 8.5' is a 5,000-pound capacity overhead anchorage connector used with temporary roof fall protection systems. It is designed to drop through an opening in any 1-3/4 inch by 2-inch substrate, provided it is compliant with all applicable fall protection requirements. This drop-through anchor is compliant with all ANSI Z359.1-2007 regulations and is available in custom lengths upon request. Roof anchors for fall protection are the best way to keep your workers safe.

FEATURES

• Meets ANSI Z359.1-2007 and ANSI A10.32-12
• Compliant with OSHA 1926.502 and OSHA 1910.66
• Product Weight: 1.8 lbs.
• Plate Dimensions: 4″ x 3/16″
• Breaking Strength: 5,000 lbs / 22kn
• Application: Concrete Floors, Steel Girders, Steel Grates
